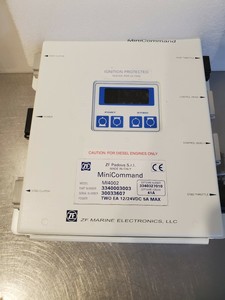

(Section 2-5) Push Button Station Transfer. (Section 2-12) Audible system diagnostics and status indications. Figure 2-13: Five (5) Second Steady Tone This tone indicates that there has been a loss of Serial Communication Three (3) Second Steady Tone Detail information on this tone is in Appendix B. Compatible Equipment, MIDECO 64-outputs MIDI note decoder USER MANUAL. When turning OFF synchronization by pressing the transfer button for two seconds, the green LED will blink twice indicating that synchronization is turned OFF CONTROL SYSTEM S CONFIGURABILITY The Processor is designed in a way which allows it to be easily configured by the installer to meet the varying needs of a wide variety of vessels. manuals This tone is also referred to as Servo 2 Jam Tone Clutch (Servo 1) Tones The following Tones are in addition to the Basic Tones listed in Section One Long - One Short Tone Detail information on this tone is in Appendix B. READ ALL THE INSTRUCTIONS PERTINENT TO EACH PART BEFORE BEGINNING THE INSTALLATION OF THE PART. Both Control Head levers are commanding Ahead clutch engagement. The red LED indicator light will go OFF at the transferring Station s Control Head, indicating that the Station no longer is in command. WARNING: PERSONAL INJURY COULD OCCUR IF THE FOLLOWING STEPS ARE NOT FOLLOWED EXACTLY. The information displayed on the Display LED is used in conjunction with the push buttons to program the Processor. The commanded positions of the Throttle and Clutch will remain unchanged for one second after the red LED lights. 1-2 BASIC THEORY OF OPERATION The MicroCommander Marine Propulsion Control System (hereafter referred to as MicroCommander or System) is designed for pleasure and light commercial marine vessels that require remote control of mechanically actuated engines and reverse reduction gears. (Section 2-10) Engine Synchronization. CAUTION: Damage to the equipment may occur if these messages are not followed. Installation & User Guide. ONLY ONE STATION CAN HAVE COMMAND AT A TIME. User s Manual HTL Encoder Interface FEN-31, www.sebury.com.cn Digital Keypad Use s Manual, R22. Activation. The system supports a mode of operation referred to as One Lever Mode, which allows the operator to control both engines and transmissions with a single Control Head lever. 2004 Targus Group International and Targus, Inc.. 400-0111-001B USER S GUIDE. B) Depress and Hold the transfer button while moving the Port or Starboard Control Head s lever out of the Ahead detent. commander Mini Amp Gizmo. actuator series zf mathers engine controls throttle (714) 891-9300 FAX. 1-3 SYSTEM FEATURES Figure 1-1: Basic MicroCommander System Drawing Standard Processor Features Station-in-Command indication. Figure 2-10: Slow Repetitive Tone This tone is normal when DC power is first applied to the System. CAUTION: Disconnect the Power Harness from the Power Pigtail whenever welding is being done on the vessel. tw siemens kettle porsche electric manual With the software application information shown on the display can be adjusted. C4 Proportional Pause Ratio - Determines if the Ahead and Astern reversal times are the same or if Astern is one half of Ahead. operation troubleshooting manual ATTENTION It is important to keep this Manual in a safe place for future reference. Owner s Manual. NOTE: IN TWIN SCREW APPLICATIONS, ALWAYS PROGRAM BOTH PROCESSORS FOR THE SAME AMOUNT OF HIGH IDLE. Only those sections that apply to your specific installation are relevant to your vessel. Cooler is Better! These push buttons allow the installer/technician access to all of the Functions required for programming and troubleshooting the Processor. Page 2-14, 28 PLAN THE INSTALLATION 3 PLAN THE INSTALLATION NOTE: ZF MATHERS RECOMMENDS THAT THE SYSTEM BE INSTALLED IN ACCORDANCE WITH ABYC, E- 11 AND P24. If additional options described within this manual are desired, contact your dealer for availability/compatibility with your system. The Start Interlock relay contact will remain open, preventing engine start. DUE TO THE IMPRECISE POSITIONING OF MECHANICAL PUSH-PULL CABLES, THE ABILITY TO POSITION THE CABLES WITHIN THE ACTIVE SYNCH DEADBAND IS SEVERELY IMPAIRED. 1 June 2012 WARNING Make all electrical and coax connections from the controller, MIDI INTERFACE Z-7 Operator s Manual Please, first read this manual carefully! With Equal Throttle Synchronization the Processors do not receive tachometer signals representative of the engines RPM's. Page 2 2 Installation. that are available on all ClearCommand Processors. D PRODUCTIVITY THROUGH INNOVATION 600 CONTROL DIRECT DRIVE TECHNICAL/OPERATION MANUAL 10 BORIGHT AVENUE, KENILWORTH NEW JERSEY 07033 TELEPHONE: 800-524-0273 FAX: 908-686-9317 TABLE OF CONTENTS Page, Troubleshooting and Diagnostics The troubleshooting and diagnostics guide provides instructions to assist in tracking down the source of many basic controller installation problems. When synchronization is turned ON by pressing the transfer button, the green LED will light after two seconds and stay lighted as long as the transfer button is depressed. Phone: (866) 701-1146 Fax: (425) 216-7558 www.remotecontroltech.com Short Range Wireless Switch System Handheld 8 Installation and Operations Guide Introduction 2 Before Installation 2 Receiver Installation Service Information Calibration & Adjustments CALIBRATION PROCEDURE AND TROUBLESHOOTING FOR LINEAR GOVERNOR CONTROLLERS Part Number DYN1-10752-000-0-12/24 DYN1-10752-001-0-12/24* DYN1-10753-000-0-12/24, Last Update: December 8, 2014 A. Synchronization Criteria Both Control Heads must be commanding 5% or greater of the throttle range. 450 900 (GB) Version 2 + + Simple wiring for quick installation + + Integrated LCD display shows you what you have programmed + + All code based programming, KNIGHT RIDER DASH ELECTRONICS PILOT\SEASON 2-2 TV DASH INSTALLATION INSTRUCTION MANUAL Bezel Overlay Voice Box Instructions Relay connection for a dash startup delay. The red LED indicator light will blink slowly, indicating Warm-Up Mode is activated and the Clutch has remained at Neutral. mathers zf marine tug propulsion cpu module heavy control boat actuator repair parts When the System is initially powered-up, it will always command Low Idle, even when High Idle is selected High Idle If High Idle is desired, it may be programmed during Dock Trials. A2 One Lever Operation - Allows the installer to disable or enable One Lever Mode capability. 52804 563-324-1046 www.racedigitaldelay.com MEGA 350/450 WARRANTY AND DISCLAIMER DIGITAL DELAY INC. WARRANTS THE PRODUCTS IT MANUFACTURES AGAINST DEFECTS IN MATERIALS. (714) 897-7632 WEBSITE: www.hewittindustries.com E-MAIL: sales@hewittindustries.com BACK PRESSURE MONITOR Operator Display. NOTE: THE CONTROL SYSTEM OFFERS TWO TYPES OF SYNCHRONIZATION, ACTIVE OR EQUAL THROT- TLE. PL H 3 G K H B Compatibility Unit style Heat Pump Horse Power Control Boost Heaters R22. RADIANT PLASMA 4700 Plasma Spark Generator Installation Guide / User Manual A S P A R K O F F R E S H A I R Aquapulser.com Contents 1 Introduction 2 1.1 About the Product Transmitter Interface Program Operational Manual Version 3.0.4 1 Overview The transmitter interface software allows you to adjust configuration settings of your Max solid state transmitters. The green LED will become solid when the engines are synchronized. Installation of the supplied mounting fixture 4 4 Electrical, Automotive sensor simulator Operating manual AutoSim Contents Introduction.. page 3 Technical specifications. page 4 Typical application of AutoSim simulator.. page 4 Device appearance page 5. zf marine mathers offer series actuator troll diagram B) Press and hold the transfer button until the green LED blinks twice and then goes out (approximately 2 seconds). If the System was in Low Idle it will toggle to High Idle, and vice versa. 08358, Arenys de Munt, Barcelona,Catalonia,Spain E-mail: info@xicoy.com. (Section ) Station Expander (SE). Figure 2-16: One Long - Two Short Tones This tone indicates that the feedback potentiometer signal from Servo 2 (Throttle) has gone out of range One Long, Two Short - High Repetitive Tone Detail information on this tone is in Appendix B. 1 MicroCommander 9110 Operation & Troubleshooting Manual MM9110 Rev.B 7-04, 3 OPTIONAL TROLL PREFACE MicroCommander 9110 Series ZF Mathers ENGINE CLUTCH Processor Part No. Installation and User Manual, Mobile Satellite Solutions. LIGHTING CONTROL PANELS 4 AND 8 RELAYS INSTALLATION INSTRUCTIONS INSTALLATION OVERVIEW The installation instructions contained in this document are provided as a guide for proper and reliable installation. AC-115 Compact Networked Single Controller Installation and User Manual December 2007 Table of Contents Table of Contents 1. Electric specifications. Page TOC-5, 11 PREFACE 1 INTRODUCTION This manual is written to document every possible system option. Norcross, GA 30071. Further movement of the Control Head lever through the next 65 degrees, will increase the engine RPM in proportion to the Control Head s lever position. (Section 2-3) Start Interlock. 160w zf These signals are compared with one another over a serial communication line. 1.3. (Section ) 9001 Trolling Valve Control (MM9001 Trolling Actuator Manual) Page 1-3, 14 OPERATION 2 OPERATION 2-1 DC POWER ON When DC power is turned ON to the Processor: A short steady tone, followed by an intermittent tone, will sound at all Remote Stations indicating that no station has command. The Slow Repetitive tone will stop at all Stations, and the red LED indicator light will turn ON at the Control Head of the Station that had assumed command of the Control System. C3 Proportional Pause Time - Selects the maximum delay during a full speed reversal. E6 High Idle - Programs a second elevated Idle RPM. This function must be the first function set during Set Up. DO NOT ATTEMPT TO TRANSFER COMMAND FROM ONE REMOTE STATION TO ANOTHER WHILE IN ONE LEVER OPERATION. MANUFACTURER DATA SHEET High Speed Counter Manufacturer: Allen-radley/Rockwell Model Number: 1746-HSCE See www.geomartin.com for additional PDF datasheets Martin Part Number: E-014901-03 VendorPartNumber: Installation & User Guide Compatible Equipment TS510 REM - Remote Keypad 9040 - Loudspeaker DC54/58 - Digital Communicator SD1+ - Speech Dialler 496525 Issue A 1 of 10 TS510 and TS500 Overview Introduction, MIDECO 64-outputs MIDI note decoder USER MANUAL Roman Sowa 2012 www.midi-hardware.com 1.Overview Thank you for choosing MIDECO as your new MIDI-to-digital converter. The board is factory programmed, G-100/200 Operation & Installation 2 Contents 7 Installation 15 Getting Started 16 GPS Mode Setup 18 Wheel Sensor Mode Setup 20 Fuel Calibration 23 Basic Operation 24 Telemetery Screen 27 Entering a Distance, Whale 3 DC Servo drive User Manual and Installation Guide Contents 1. Additional information can be found in the MM9000-I ClearCommand Installation and Troubleshooting Manual Multiple Screw Installations This Manual, as written, is intended for Single and Twin Screw applications only. 1.1. C) After one second, move the Control Head s lever to the Ahead detent, while continuing to hold the transfer button. The following Sections are unique to the Control Processor supplied with your System. A WiWorld Partner SATELLITE TV ANTENNA CONTROLLER RFM-1000/1100 TECHNICAL MANUAL STOW SEARCH. High Idle is automatically selected when in Warm-Up Mode Selecting Between High and Low Idle WARNING: PERSONAL INJURY COULD OCCUR IF THE FOLLOWING STEPS ARE NOT FOLLOWED EXACTLY. Box 907 Hatfield, PA 19440-0907 USA (215) 723-4000 / fax (215) 723-5106 VANGUARD A OPERATOR S MANUAL FM-952 Rev. service manuals outboard litre mercury 1984 genuine oem manual v3 wind second Device Overview4, AMS-000 Multi-Channel Air Management System for Boost Control The terminal pin descriptions may also be viewed on screen. 3. Figure 2-17: One Long - Two Short - High Repetitive Tones This tone indicates that Servo 2 (Throttle) cannot reach the commanded position. (Section 2-7) Warm-up Mode. The green LED will blink as the system is working toward synchronization. Targus Wireless RF Mouse USER S GUIDE. GENERAL G.A.L. This tone is also referred to as Servo 1 Jam Tone Trolling Actuator Tones (Servo 3) The following Tones are in addition to the Basic Tones listed in Section , page One Long, Four Short Tones Detail information on this tone is in the Manual supplied with the 9001 Trolling Actuator. Page 4 3 Set Up & Operation. Provide a diesel engine driven electric generating unit, factory assembled, tested and certified to operate at, ADDING and/or DELETING PIN NUMBERS (Plus other simple programming commands) in My DK-16 or DK-26 DIGITAL KEYPAD A recurring call that we get here at Securitron Technical Support is from end users of our, Installation and Operation Back-UPS 1250, 1300, 1500 Inventory bu001a Safety and General Information This unit is intended for indoor use only. Throughout this manual special attention should be paid to the following: CONTAINS HELPFUL INFORMATION. (Back-up Mode and Troll Solenoid is not available for all Processors.) P.O. Do not operate this unit in direct sunlight, in contact with, Unit 24: Applications of Pneumatics and Hydraulics Unit code: J/601/1496 QCF level: 4 Credit value: 15 OUTCOME 2 TUTORIAL 4 DIRECTIONAL CONTROL VALVES The material needed for outcome 2 is very extensive, Electric Landing Gear controllers and sequencer LGC12 / LGC 13C Users Guide. Command can be transferred as follows: A) The Station-in-Command s lever(s) may be left in any position. Timing to engage control function (Button push, momentary hold for 2 seconds) is far different from older models. Figure 2-3: Remote Stations Before Transfer of Command Figure 2-4: Remote Station Transfer after Transfer of Command The red LED indicator light at the receiving Station s Control Head will illuminate, indicating that the Station has taken command. FM-952 Rev. IF ANY OF THE FOLLOWING TESTS FAIL, CONSULT APPENDIX B TROUBLESHOOTING. Three additional Stations can be connected directly to the standard Processor. C) Movement of the Control Head s lever 15 degrees to the Ahead or Astern detent will command Ahead or Astern clutch engagement, while the engine RPM remains at Idle. Not all Processors are supplied with all of these pigtails. Page 2-1, 15 OPERATION 2-4 START INTERLOCK (IF USED) The engine start signal is blocked unless all of the following are true: DC power has been turned ON to the Control System. Safety notes. (Sections ) Multiple Screw installations. DC Servo drive. (Section 2-11) Easily configured to a vessel s control requirements. C7 Clutch Astern - Adjusts the amount of clutch servo travel in Astern. Manual 02880 (Revision B), TC-9102 Series Surface Mount Temperature Controllers, ABB Drives. Below you will find a list and a brief description of the groups of these functions Processor Functions Within this section of adjustable parameters, there are up to five different adjustments: A0 Processor Identification - Assigns each Processor in multi-screw application a unique identifying number. Preface-1 added last paragraph regarding hard-wiring per ELR Section Fig 4-3 revised per ELR 1099 to 5 amperes. Only one remote station will have command at a given time and the Station-in-Command is indicated by a red LED indicator light located on the Control Head. 27105 Telephone 336-655-4801 e-mail: ivirscar@knight-f2k4.com, Operation and Calibration Manual. BobCAD-CAM includes software for both sending and receiving and running, Samba OPLC SM35-J-R20 Installation Guide The Unitronics SM35-J-R20 offers the following onboard I/Os: 12 Digital Inputs, configurable via wiring to include: 1 HSC/Shaft-encoder Input, 2 Analog inputs (only. NOTE: THE USE OF VALUE 03 FOR FUNCTION CODE E7 SHOULD BE AVOIDED IN THE 9000 SERIES PROCESSORS WITH MECHANICAL THROTTLE CONTROL. PU H 3 Y K A Compatibility Outdoor, torm Secure Keypads for access control Strike Master Read this manual carefully before attempting to install, program or operate the STORM AXS Strike Master Keypad. A Table of Contents Section 1 Introduction 1 Section 2 Installing the 20-1050CUL 4 Section 3 Installing the IFM1 Interface, An ISO 9001:2008 Registered Company ILISC515-A Shift Interlock (Manual Lift Door) 2015 Ford Transit, 3.7L and 3.5L Introduction The ILISC515-A is a microprocessor driven system for controlling wheelchair, MODEL PRO-9744 INSTALLATION MANUAL Multi Function, User Configurable Remote Vehicle Security System with 4 Button Replaceable Membrane Remote Transmitter This System Allows The Transmitter Buttons To Be, 25.03.0023 Introduction The display comes with a software application. (Section ) Clutch pressure interlock. Safety instructions. When the green LED is not lit, the engines are not synchronized and the Control System is not attempting to do so Turning Synchronization OFF: A) Ensure that the Control Head's levers are positioned to a point where Synchronization Criteria are met. Page 2-10, 24 OPERATION Five (5) Second Steady Tone Detail information on this tone is in Appendix B. Connect to the +12v side of relay, Operation and Calibration Manual 723PLUS Digital Speed Control for Single Engine Marine Propulsion Applications 8280-419 Manual 02880 (Revision B) WARNING DANGER OF DEATH OR PERSONAL INJURY WARNING FOLLOW, SERVICE BULLETIN No.1103 Circulate to listed addressees COACH MODEL BULLETIN TYPE MANUAL & SECTION PARTS BOOK REVISION : T 2100 and C2000 Series : Service Information : Maintenance Manual: Chapter 3 Drive, TC-9102 Series Surface Mount Temperature Controllers General Description & Applications The TC-9102 Series Temperature Controller offers a versatile solution for a wide variety of applications that may, ABB Drives User s Manual HTL Encoder Interface FEN-31 HTL Encoder Interface FEN-31 User s Manual 3AUA0000031044 Rev B EN EFFECTIVE: 2010-04-06 2010 ABB Oy. Page Preface-1, 4 PREFACE Hard-wired installation is described in MM9110-I MicroCommander Installation Manual with the exception of the Tachometer Signal and Serial Communication Pigtails, which always come from the factory pre-wired. Detail information on each function is found in the MM9000-I Installation Manual Basic Clutch Functions The following functions are available for all types of clutches. F) When the Control Head s lever is returned to the Neutral detent, the red LED will discontinue blinking and remain lit steady. A LDG SLS-2 Two-Port RJ45 Switch LDG Electronics 1445 Parran Road St. Leonard MD 20685-2903 USA Phone: 410-586-2177 Fax: 410-586-8475 ldg@ldgelectronics.com www.ldgelectronics.com, Congratulations on the purchase of your new Phoenixtech Brushless Motor Speed Controller. The manual contains answers to questions that may arise during operation or installation of the ZF Mathers Control System and its options. For the purpose of this manual, the drawings illustrate pluggable systems with two Remote Stations. (Section 2-6) Proportional Pause on through Neutral Shifts. Warranty. mathers pinnacle marine zf features optional marines actuator zf ADDITIONALLY, THE GREEN INDICATION LED DOES NOT BLINK WHILE WORKING TOWARD SYNCHRONIZATION. This microprocessor-based, Memcom Emergency Telephone Installation Guide Ref No. MOVING THE LEVER FULLY FORWARD IS RECOMMENDED, BECAUSE IT MOVES IT OUT OF THE WAY AND PRE- VENTS ACCIDENTAL BUMPS WHILE OPERATING Turning OFF One Lever Operation A) Place the Master lever into the Neutral detent. (Section 2-13) Push Button Set Up. Connection, Service Manual Trucks Group 36 Vehicle Electronic Control Unit (MID 144), Diagnostic Trouble Code (DTC), Guide From build date 1.2007 PV776-88951780 Foreword The descriptions and service procedures contained. C) Synchronization is now OFF Turning Synchronization ON: A) Ensure that the Control Head's levers are positioned to a point where Synchronization Criteria are met. Page 2-6, 20 OPERATION CAUTION: The Control System will remain synchronized as long as the Control Head's levers are in close proximity to one another. The following Sections are unique to the Control Processor supplied with your System. 36 Issued 7-99 ECAS System for 6 x 2 and 6 x 4 Vehicles with Rear Air Suspensions Service Notes Service Notes This, OPERATING INSTRUCTIONS Modular I/O System Analog and Digital Interface Modules Installation Operation Maintenance Document Information Document ID Title: Operating Instructions Modular I/O System Part, Bluetooth + USB 16 Servo Controller [RKI-1005 & RKI-1205] Users Manual Robokits India info@robokits.co.in http://www.robokitsworld.com Page 1 Bluetooth + USB 16 Servo Controller is used to control up to. After one second in Neutral, the Processor will automatically reset to normal operation with full control of the clutches and engine. marine seimi servo type equipment rf + Installation and Operation Manual Back-UPS BX800CI-AS/BX1100CI-AS Inventory Safety and General Information bu001c This unit is intended for indoor use only. If the Synchronization Criteria is met, the throttle command signal of the engine running at the higher RPM is lowered, until the RPM's of both engines match Synchronization Indications The green LED located on the Control Head indicates the status of synchronization. Shift: Servo: The Shift servo will drive to Neutral. When Page 2-5, 19 OPERATION synchronization has been selected during set up, the Control System will always power-up with synchronization ON. These tones are emitted from all Remote Stations regardless of whether they are in command or not Slow Repetitive Tone Detail information on this tone is in Appendix B. Figure 2-15: Five Seconds On, Five Seconds Off - High Repetitive Tone This tone indicates that Function Code A3 Station Expander (SE) has had the value 01 Enabled entered, but the Processor and Station Expander cannot communicate Throttle (Servo 2) Tones The following Tones are in addition to the Basic Processor Tones One Long - Two Short Tones Detail information on this tone is in Appendix B. A full explanation is provided in the MM9000-I ClearCommand Installation and Troubleshooting Manual Station Expander (SE) The SE is a separate Processor housed in an enclosure that allows the connection of up to five additional Remote Control Stations. Page 2-2, 16 OPERATION 2-6 PROPORTIONAL PAUSE The proportional pause provides a means of safely reversing the vessel s direction. B) Place the Control Head s lever(s) of the receiving Station in the Neutral/Idle detent position (refer to Figure 2-3:). CAUTION: Electro-static discharge can damage this equipment. (Section 2-16) Optional System Features (Section 2-16) System failure external alarm contact. 10/20/2012, ETZGAR CONVEYOR COMPANY Controls Section v12.05, AC-115 Compact Networked Single Door Controller. B 7/04 Revised to new modular style. The Port or the Starboard lever at any Remote Station can be designated by the operator as the Master lever. Page 3-1, 29 INSTALLATION 4 INSTALLATION NOTE: BEFORE STARTING THE ACTUAL INSTALLATION OF THE CONTROL SYSTEM, MAKE SURE YOU HAVE THE CORRECT PARTS AND TOOLS ON HAND. In order to do so, contact your ZF Mathers representative for the required information and materials Mechanically Actuated Trolling Valve Control The purpose of a Trolling Valve is to lower the Clutch pressure, which allows the Clutch Plate to slip.
